Application of Dinghongrun optical elements in laser cutting

​​Case Studies 251
Application of Dinghongrun optical elements in laser cutting

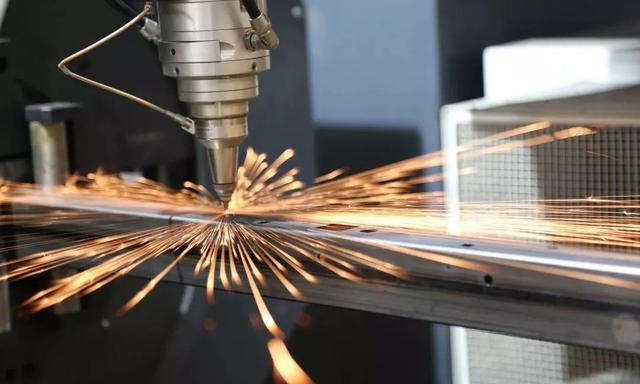

Laser cutting is to focus the laser beam with high power density on the surface or inside of the material to be cut. The energy of the laser beam rapidly heats the material to the threshold of melting, vaporization or combustion. At the same time, the molten or vaporized materials are blown away by means of the high-speed gas flow (usually inert gas such as argon or nitrogen) coaxial with the beam, so as to form a continuous cut on the material and achieve cutting. Dinghongrun The optical elements involved in laser cutting include window sheets, lenses, filters and mirrors.

Optical elements required for laser cutting

Window slice
Calcium fluoride window slice, barium fluoride window slice, magnesium fluoride window slice, silicon window slice, germanium window slice, zinc selenide window slice, zinc sulfide window slice, sapphire window slice, fused quartz window slice

lens
Flat convex lens, flat concave lens, biconcave lens, biconvex lens, meniscus lens

filter
Germanium long wave pass filter, silicon long wave pass filter

reflector

Application fields of laser cutting
Automobile, aircraft, ship, building, sheet metal manufacturing, auto parts manufacturing, mold manufacturing, display screen cutting, semiconductor chip cutting, connector manufacturing, sensor manufacturing, microelectromechanical system manufacturing, flexible circuit board processing, medical equipment, dental appliances, manufacturing high-end bracket cutting equipment, advertising signs, display shelves, handicraft processing Building model making, wood furniture, image carving.

Instruments required for laser cutting
Laser generator, beam transmission unit, machine tool, numerical control system, stabilized power supply, stabilized power supply, cooler.
