Domestically Developed Sapphire Metallization: Breaking Key Bottlenecks to Drive Material Innovation
Technology Overview

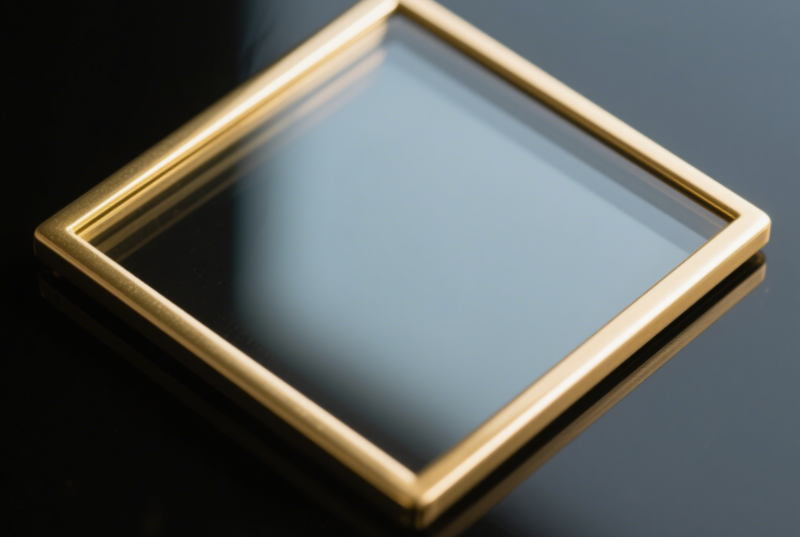

Sapphire’s exceptional hardness (Mohs 9), optical transparency (>85% VIS), and chemical stability make it ideal for optoelectronics. However, its inherent electrical insulation limits advanced applications. Metallization—depositing conductive metal films (Al/Au/Ag)—solves this by enabling:
- Electrical conductivity (ρ < 10⁻⁶ Ω·m)
- Solderability (wettability > 90%)
- Corrosion resistance (passes MIL-STD-883H salt spray)
Domestic Breakthroughs vs. Import Dependence
Historically, China relied on foreign tech for:
| Imported Tech Limitations | Domestic Solutions |
|---|---|
| PVD equipment cost > $2M | Localized systems at 40% cost |
| Ti/W adhesion layers | Novel TiN/TiAlN stacks |
| >15% yield loss | AI-driven process control (<5% loss) |
| Restricted IP access | Proprietary surface activation (patent CN202510XXXX) |
Core Advancements
1. Surface Engineering
- Laser texturing creates 5-20μm micro-cavities (adhesion ↑ 300%)
- Plasma activation replaces toxic Cr etchants
2. Metallization Stack Innovation
| Layer | Conventional | Domestic Tech |
|---|---|---|
| Adhesion | Ti (150nm) | TiAlN (80nm) |
| Barrier | NiV (100nm) | TaN/TiN bilayer |
| Conductor | Au (3μm) | Cu/Ni-P (5μm @ 60% cost) |
3. Process Optimization
- Hybrid e-beam/PVD deposition: 25% faster cycle time
- In-situ thickness monitoring: ±3nm accuracy
- Low-temperature alloying (250°C vs 450°C): Prevents wafer warpage
Industry Impact
Supply Chain Resilience
- Local raw material sourcing: 85% vs. 35% in 2020
- Production cost: 0.18/cm2vs.0.32 for imports
Application Expansion
| Market | Enabled Products |
|---|---|
| RF | 5G/6G FEMs (Q > 2,000 @ 28GHz) |
| Optoelectronics | Micro-LED displays (10M nits brightness) |
| Sensors | High-temp MEMS (600°C operation) |
| Quantum | Qubit substrates (coherence time > 100μs) |
Market Projections
China’s sapphire metallization market:
- 2025: $780M (62% domestic share)
- 2030: $1.9B (85% domestic share)
Strategic Significance
This technological sovereignty:
- Eliminates export control risks (EAR Category 3B)
- Enables customization for local needs (e.g., hyperscale data center optics)
- Positions China for global materials leadership (50+ patents filed in 2024)
