Customizing the metallization of sapphire surface: precise solutions from material combination to process adaptation

In the field of modern high-end manufacturing, sapphire has become a key material in semiconductor, optoelectronics, aerospace and other industries with its ultra-high hardness, excellent chemical stability and excellent optical performance. However, the inherent non-conductive and surface characteristics of sapphire have become the threshold for its wider application. Sapphire metallization The process endows this “perfect substrate” with conductivity, thermal conductivity and solderability by precisely depositing a metal film on its surface, thus opening its application space in cutting-edge technology. The core of realizing the metallization value of sapphire lies in whether it can provide highly customizable process schemes to meet the demanding requirements for performance in different scenarios 。

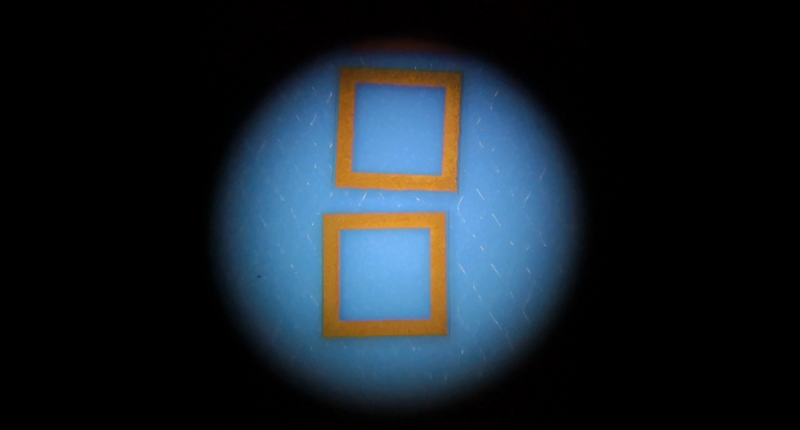

1、 Customized starting point: understand requirements and define metallization goals

The technological path of sapphire metallization is not “universal”. The scheme design should start from the in-depth analysis of the application scenario:

Electronics and semiconductors : LED chips, power devices, high-frequency communication substrates and other applications, the core demands are extremely low contact resistance, excellent signal transmission integrity and stability under high temperature. The metal layer shall have high conductivity, low loss and good compatibility with solder.
Optics and laser devices : Window slice, reflector, laser cavity and other components are required to maintain high transmittance or reflectivity in specific wavebands. The thickness, uniformity and optical characteristics of the metal layer become key considerations.
Aerospace and High Temperature Sensing : For extreme environmental applications such as engine sensors and high-temperature windows, the metal layer must be resistant to ultra-high temperature, thermal shock, oxidation resistance, and have a strong bond with the sapphire matrix to resist severe stress.
Biomedical implants : The surface metallization of surgical tools, biosensors and implants requires consideration of biocompatibility, long-term corrosion resistance and specific surface antibacterial function.
Combination of decoration and function : For high-end surface mirrors, decorative panels, etc., it is necessary to achieve specific metallic luster, color or texture effects while ensuring wear and corrosion resistance.

Clarifying the performance priority (conductive/thermal conductive/optical/mechanical/environmental tolerance) is the basis for process selection and parameter setting.

2、 Process toolbox: core metallization method and its customization potential

At present, the mainstream sapphire metallization process has its own characteristics, and its adjustable parameters provide technical support for customization:

Physical Vapor Deposition (PVD) — Control of Precision and Uniformity
- Vacuum evaporation : Heat metal sources (such as aluminum, gold and silver) to evaporate and deposit in ultrahigh vacuum environment. The advantage is that the equipment is relatively simple and the film is pure, especially suitable for optical applications requiring ultra-thin and uniform metal layers (such as transparent conductive films). Its customization is reflected in the realization of nanometer precision film thickness control by precisely controlling the evaporation source temperature, deposition time, substrate temperature and rotation speed. The limitation is that the film adhesion is relatively weak, and the coverage of complex three-dimensional shapes is poor.
- Magnetron sputtering : The metal target is bombarded by plasma, and the splashed atoms are deposited on the surface of sapphire. Its core advantage is that the film is compact, with strong adhesion (better than steam plating), can deposit high melting point metals and alloys (such as Ti, W, Pt, NiCr), and has good step coverage. The customization potential is huge: by adjusting the sputtering power, pressure, gas composition (such as adding reaction gas to form nitride), substrate bias, and deposition time, the film stress, crystal orientation, density, and composition can be finely adjusted. It is suitable for applications requiring high bonding strength and reliability such as high-performance electrodes, high-frequency circuits and wear-resistant coatings.
Chemical Vapor Deposition (CVD) – Solution for Complex Structure and High Temperature Resistance The metal containing precursor gas is introduced into the reaction chamber, and the metal film is deposited on the surface of the substrate through high-temperature pyrolysis or chemical reaction. The core customization advantage of CVD lies in its excellent step coverage and conformal coverage, which can form a uniform coating on the surface of complex three-dimensional structures (such as deep holes and special-shaped parts). By selecting different precursors (such as carbonyl nickel and organic gold) and precisely controlling the reaction temperature, pressure and gas flow ratio, high purity, dense and well adhered films (such as tungsten and molybdenum) can be deposited, which is especially suitable for high-temperature sensor packaging, complex shaped electronic components and other scenarios.
Wet chemical method: balance between cost and complex shape
- Electroless plating : Autocatalytic deposition of metals (such as Ni-P, Ni-B, Cu) on the catalytic surface (sensitized and activated sapphire) with reducing agent. Its biggest customization advantage lies in its simple equipment, low cost, and Not limited by base material geometry It can form uniform coating on complex surfaces and cavities. Nickel base alloy coatings with different phosphorus content, hardness, conductivity and corrosion resistance can be obtained by adjusting the bath composition, pH value, temperature and additives, which are commonly used for functional coatings that are cost sensitive and complex in shape.
- Electroplating : thicken the metal layer (such as thick gold and copper) by electrochemical reduction deposition on the conductive substrate (such as PVD/CVD seed layer). Its customization is reflected in the rapid deposition of thick films (tens of microns), precise control of thickness distribution (through current density and waveform control), and excellent conductivity/thermal conductivity. It is a key subsequent process for metallization of heat dissipation substrate and high current connection area of power devices.
Composite process and post-treatment – performance upgrading A single process is often difficult to meet all requirements, and customized schemes often need to combine process chains:
- Multilayer structure design : The most typical ones are Cr/Ni/Au system 。 The chromium (Cr) layer is used as the base layer to provide strong oxidation bonding with sapphire and solve the adhesion problem; The nickel (Ni) layer acts as a barrier layer/stress buffer layer to improve the mechanical strength and prevent gold diffusion; As a functional surface layer, gold (Au) layer provides excellent conductivity, oxidation resistance and solderability. The metal selection and thickness ratio of each layer can be flexibly adjusted according to the conductive demand, service temperature and cost budget.
- Laser annealing : Conduct local high-energy laser scanning on the deposited metal layer. Instantaneous high temperature can significantly improve the crystallization quality of the film, reduce the resistivity, and enhance the interdiffusion and adhesion between the film substrate interface. It is an effective post-processing customization means to improve the performance of high-frequency devices.
- Surface nano pretreatment : Using plasma etching, ion implantation and other technologies to roughen the sapphire surface at the nanometer level or introduce defect layers can improve the mechanical anchoring force of subsequent metal layers several times.

3、 Customized solutions to key challenges

To achieve high-performance and reliable sapphire metallization, common problems must be solved:

Poor adhesion between membrane and substrate : This is the main cause of failure. Customized solutions include:
- Surface Ultra precision purification (Plasma cleaning, ultraviolet ozone treatment) to remove organic pollutants.
- Adopt High-energy ion beam assisted deposition (synchronous ion bombardment in PVD process) to enhance atomic mobility and interface mixing.
- Select High activity base metal (Ti, Cr) or deposition Transition layer (e.g. TiN).
- For high demand applications, implement In situ (in deposition) or post treatment (such as laser) annealing To promote interface reaction.
Thermal stress and thermal expansion mismatch cracking : The thermal expansion coefficient of sapphire differs greatly from that of common metals (Al, Au). Customized strategy:
- Selection The coefficient of thermal expansion is relatively close Metal (such as Mo, W).
- Introduction Flexible/gradient transition layer (such as Ni layer in multi-layer Cr/Ni structure) to absorb stress.
- Precise control of deposition temperature and post-processing temperature curve Avoid sudden cooling and heating.
Insufficient film uniformity and density : It affects electrical and optical properties and service life. Solution customization:
- For PVD, optimize Chamber gas flow field 、 Substrate rotation/revolution mode 。
- For CVD, precise design Reactor structure And Precursor conveying system 。
- Adopt Ion plating (Ion Plating) and other enhanced PVD technologies to improve the film density.
Uneven coverage of complex geometry : Wet chemical plating is the preferred solution; For PVD/CVD, design Special fixture 、 Optimize plasma distribution Or adopt Atomic layer deposition (ALD) Technology to achieve atomic level uniform coating.

4、 Future road of customized process

Sapphire metallization technology is developing towards a more intelligent, refined and green direction:

Digital process simulation and control : Using computational fluid dynamics (CFD), plasma simulation and other tools, optimize chamber design and deposition parameters in the virtual environment, reduce trial and error costs, and achieve “one-time deposition success”.
Integrated Application of Atomic Layer Deposition (ALD) : ALD can provide unmatched film thickness control accuracy (atomic level) and three-dimensional conformality, and is a key complementary technology for the preparation of ultra-thin seed layer and precision diffusion barrier layer in the future.
Development of New Metal Alloys and Composite Films : Explore new alloys or metal matrix composites with lower resistance, better thermal matching, stronger oxidation resistance or specific functions (such as magnetism and biological activity), and expand application boundaries.
Environmental friendly wet process : Research and develop environment-friendly processes such as cyanide free electroplating and low phosphorus/phosphorus free electroless plating to meet increasingly stringent environmental regulations.

Conclusion: Customization is the key to unlock the potential of sapphire

Sapphire metallization is by no means a simple coating process, but a systematic technology integrating material science, surface physical chemistry and precision engineering. The realization of its value highly depends on whether the unique scenarios of terminal applications – from micro and nano electronics to 10000 meters high, from human implantation to industrial lasers – can provide Material selection (metal system), structural design (single-layer/multi-layer), core process (PVD/CVD/wet/composite) and post-treatment optimization The whole chain customization scheme of. Only by deeply understanding the needs, accurately matching the process, and strictly controlling the details of the process can sapphire, the “body of corundum”, be covered with “metal armor” with different functions, and release its huge potential in the forefront of science and technology.
